Docling Parser (REST API)¶

Intro¶

The Docling Parser is an advanced PDF document parser based on IBM's docling document processing pipeline. As of 3.0.0-alpha1, it is the primary parser for PDF documents in OpenContracts. The parser runs as a microservice and is accessed via REST API, providing better dependency isolation and scalability.

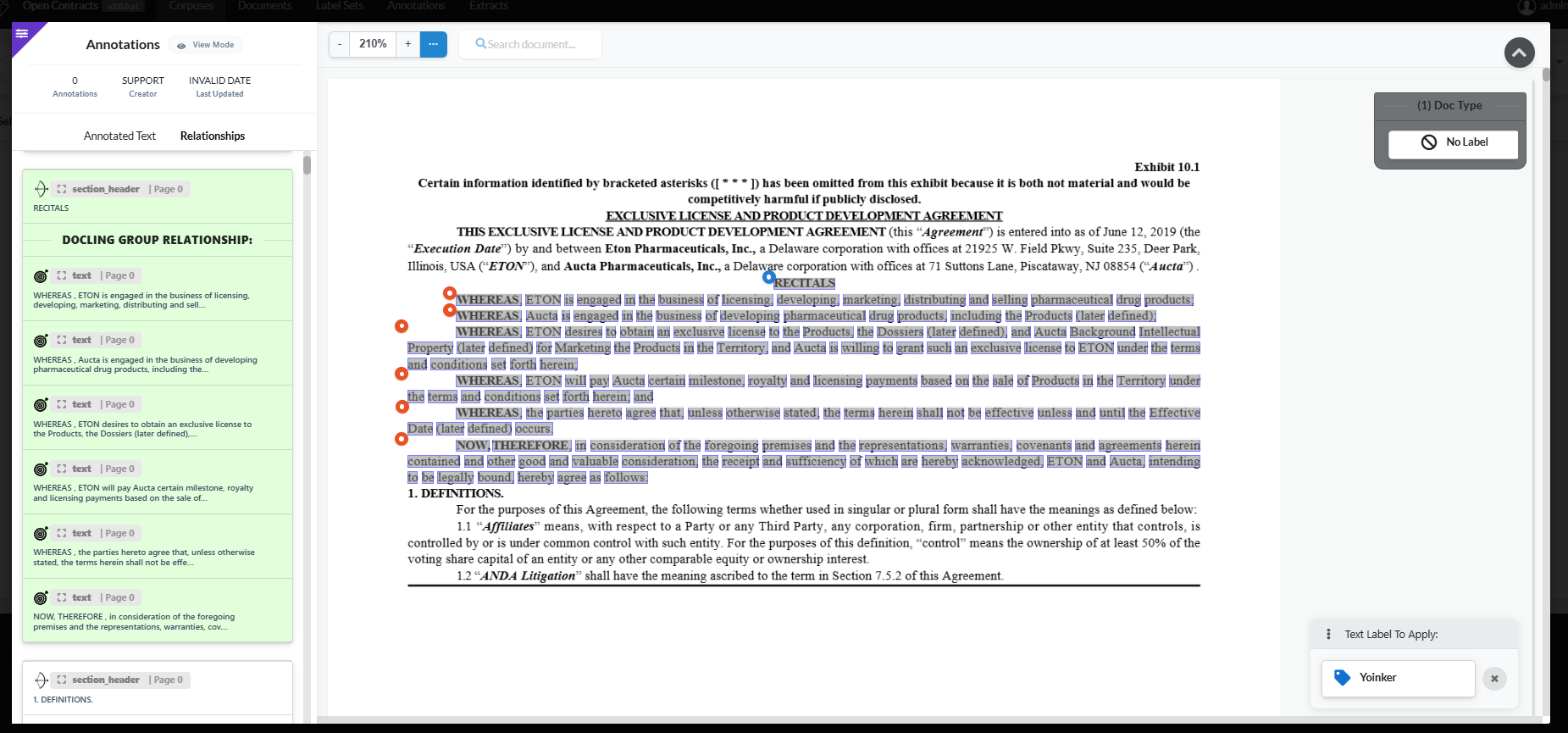

Perhaps its coolest feature, besides its ability to support multiple cutting-edge OCR engines and numerous formats, is its ability to group document features into groups. We've found this to be particularly useful for contract layouts and setup our Docling integration to import these groups as OpenContract "relationships" - which, if you're not familiar, map N source annotations to N target annotations. In the case of the Docling parser, these look like this (AWESOME):

Architecture¶

```mermaid sequenceDiagram participant U as User participant DP as DoclingParser (REST Client) participant DS as Docling Service (Microservice) participant DC as DocumentConverter participant OCR as Tesseract OCR participant DB as Database

U->>DP: parse_document(user_id, doc_id)
DP->>DB: Load document
DP->>DS: HTTP POST with document + settings
DS->>DC: Convert PDF

alt PDF needs OCR
    DC->>OCR: Process PDF
    OCR-->>DC: OCR results
end

DC-->>DS: DoclingDocument
DS->>DS: Process structure
DS->>DS: Generate PAWLS tokens
DS->>DS: Build relationships
DS-->>DP: JSON response
DP->>DB: Store parsed data
DP-->>U: OpenContractDocExport

```

Features¶

Microservice Architecture: Runs Docling in an isolated container for better dependency management
Intelligent OCR: Automatically detects when OCR is needed
Hierarchical Structure: Extracts document structure (headings, paragraphs, lists)
Token-based Annotations: Creates precise token-level annotations
Relationship Detection: Builds relationships between document elements
PAWLS Integration: Generates PAWLS-compatible token data
Async Processing: Non-blocking REST API calls with configurable timeouts

Configuration¶

The Docling Parser is configured through Django settings:

# Configure the parser in settings
INSTALLED_PARSERS = [
    "opencontractserver.pipeline.parsers.docling_parser_rest.DoclingParser",
]

# Configure the Docling microservice URL
DOCLING_PARSER_SERVICE_URL = "http://docling-parser:8000/parse/"

# Configure request timeout (in seconds)
DOCLING_PARSER_TIMEOUT = 300  # 5 minutes default

# Optional: Enable OCR for scanned documents
DOCLING_ENABLE_OCR = True

# The microservice itself needs models path configured via environment
# DOCLING_MODELS_PATH = "/models/docling"

Microservice Setup¶

The Docling microservice runs in a separate Docker container:

# docker-compose.yml
services:
  docling-parser:
    image: opencontracts/docling-parser:latest
    ports:
      - "8000:8000"
    environment:
      - DOCLING_MODELS_PATH=/models/docling
      - ENABLE_OCR=true
      - MAX_WORKERS=4
    volumes:
      - docling_models:/models/docling

Usage¶

Basic usage:

from opencontractserver.pipeline.parsers.docling_parser_rest import DoclingParser

parser = DoclingParser()
result = parser.parse_document(user_id=1, doc_id=123)

With options:

result = parser.parse_document(
    user_id=1,
    doc_id=123,
    force_ocr=True,  # Force OCR processing
    roll_up_groups=True,  # Combine related items into groups
)

Input¶

The parser expects: - A PDF document stored in Django's storage system - A valid user ID and document ID - Optional configuration parameters passed to the microservice

Output¶

The parser returns an OpenContractDocExport dictionary containing:

{
    "title": str,  # Extracted document title
    "description": str,  # Generated description
    "content": str,  # Full text content
    "page_count": int,  # Number of pages
    "pawls_file_content": List[dict],  # PAWLS token data
    "labelled_text": List[dict],  # Structural annotations
    "relationships": List[dict],  # Relationships between annotations
    "doc_labels": List[dict],  # Document-level labels
}

Processing Steps¶

Document Loading
Loads PDF from Django storage
Encodes document as base64 for transmission
REST API Call
Sends document to Docling microservice
Includes processing parameters (OCR, grouping, etc.)
Handles timeout and retry logic
Microservice Processing
Converts PDF using Docling's DocumentConverter
Applies OCR if needed
Extracts document structure
Creates PAWLS-compatible tokens
Builds spatial indices for token lookup
Transforms coordinates to screen space
Response Processing
Validates JSON response structure
Converts to OpenContractDocExport format
Handles errors gracefully
Metadata Extraction
Extracts document title
Generates description
Counts pages

Advanced Features¶

OCR Processing¶

The parser can use Tesseract OCR when needed:

# Force OCR processing
result = parser.parse_document(user_id=1, doc_id=123, force_ocr=True)

Group Relationships¶

Enable group relationship detection:

# Enable group rollup
result = parser.parse_document(user_id=1, doc_id=123, roll_up_groups=True)

Spatial Processing¶

The microservice uses Shapely for spatial operations: - Creates STRtrees for efficient spatial queries - Handles coordinate transformations - Manages token-annotation mapping

Error Handling¶

The REST client includes robust error handling:

Connection Errors: Logs error and returns None
Timeout Errors: Configurable timeout prevents hanging requests
Service Unavailable: Gracefully degrades to fallback parsers
Invalid Responses: Validates JSON structure before processing
Document Processing Errors: Detailed error messages from service

Example error handling:

try:
    response = requests.post(
        self.service_url,
        json=request_data,
        timeout=self.request_timeout
    )
    response.raise_for_status()
except requests.exceptions.Timeout:
    logger.error(f"Timeout parsing document {doc_id}")
    return None
except requests.exceptions.RequestException as e:
    logger.error(f"Error calling Docling service: {e}")
    return None

Performance Considerations¶

Network Latency: REST API adds minimal overhead (~100ms)
Service Scaling: Can run multiple Docling service instances
Memory Isolation: Service memory usage doesn't affect main application
Processing Time: Typically 5-10 seconds per page for complex documents
Timeout Handling: Configurable timeout prevents hanging requests
Large Documents: May require increased timeout settings
Concurrent Processing: Service can handle multiple requests

Best Practices¶

OCR Usage
Let the parser auto-detect OCR needs
Only use force_ocr=True when necessary
Group Relationships
Start with roll_up_groups=False
Enable if hierarchical grouping is needed
Error Handling
Always check return values
Monitor service logs for issues
Implement fallback parsers
Memory Management
Monitor service container memory
Scale horizontally for large workloads
Use appropriate timeout values
Service Health
Implement health checks for the service
Monitor service availability
Use container orchestration for resilience

Troubleshooting¶

Common issues and solutions:

Connection Refused

ConnectionError: Cannot connect to Docling service

Check that Docling service is running
Verify DOCLING_PARSER_SERVICE_URL is correct
Check Docker network configuration
Timeouts
```
Timeout error after 300 seconds
```
Increase DOCLING_PARSER_TIMEOUT for large documents
Check service resource allocation
Monitor service logs for errors

Missing Models (Service)

FileNotFoundError: Docling models path does not exist

Verify service DOCLING_MODELS_PATH environment
Check model volume mount
Ensure models are downloaded
OCR Failures
```
Error: OCR processing failed
```
Verify OCR is enabled in service
Check Tesseract installation in container
Review service logs for OCR errors
Memory Issues (Service)
```
Container killed: Out of memory
```
Increase Docker container memory limits
Reduce concurrent processing workers
Process smaller batches

Dependencies¶

Client (Django app):¶

requests: HTTP client for REST API calls
Django storage system for document access

Service (Microservice container):¶

docling: Core document processing
pytesseract: OCR support
pdf2image: PDF rendering
shapely: Spatial operations
numpy: Numerical operations
fastapi: REST API framework
